Description

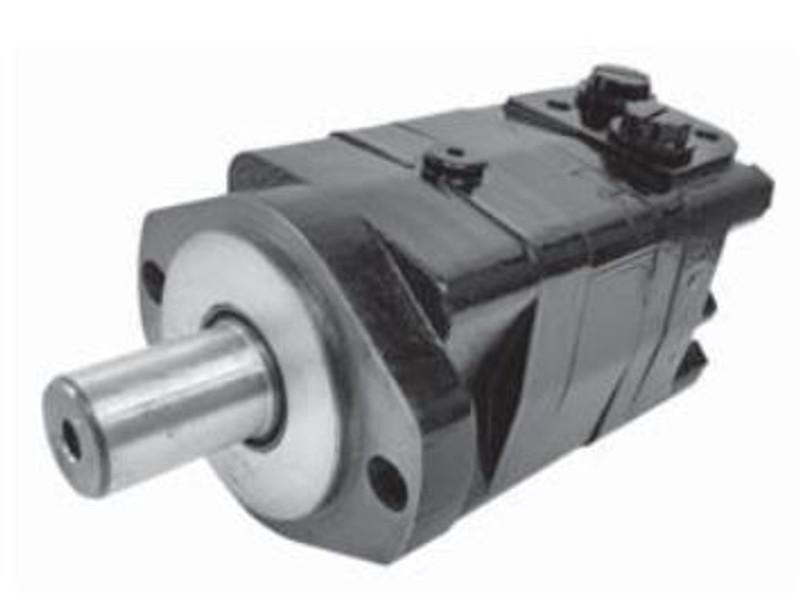

The BMSY series motor adapts the advanced ROLORTORCโข gear set design with DISC distribution flow and high pressure. These motors can be supplied with various options for multi-functional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation.
Specifications
Weight:
32.00 LBS
PSI:
2320
Port Size:
SAE 10
Cubic Inch Displ. (CID):
24.04
Flange O.D.:
4.19 center to center bolt
GPM:
19.8
Rotation:
Bi-rotational
Mounting:
2 bolt A flange
RPM:
185
Shaft:
1.25 straight keyed x 1.89 length
Torque:
7786
