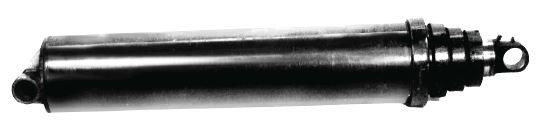

Description
Rebuildable โข Adjustable V-packing provides low-pressure and high-pressure sealing โข External packing nuts provide added support for tubes and simplify servicing. 2500 PSI Max โข 1/2-14 npt ports โข Polished steel or
chromed stages โข Primer finished โข Volumes listed are at full extension. Need an Enhanced Breather Vent? Bailey part #237249 will work for you!
Specifications
Weight:
66.00 LBS
Bore:
3 in
Stroke:
46.67 in
Body o.d.:
4 in
PSI:
2500
Rod Dia.:
1.88 in
Pin Dia.:
NA
Retracted:
32.84 in
Extended:
79.51 in
Port Size:
1/2-14 NPT
Column Load:
NA
Mounting:
Cross-tube
Stages:
Two
