Description

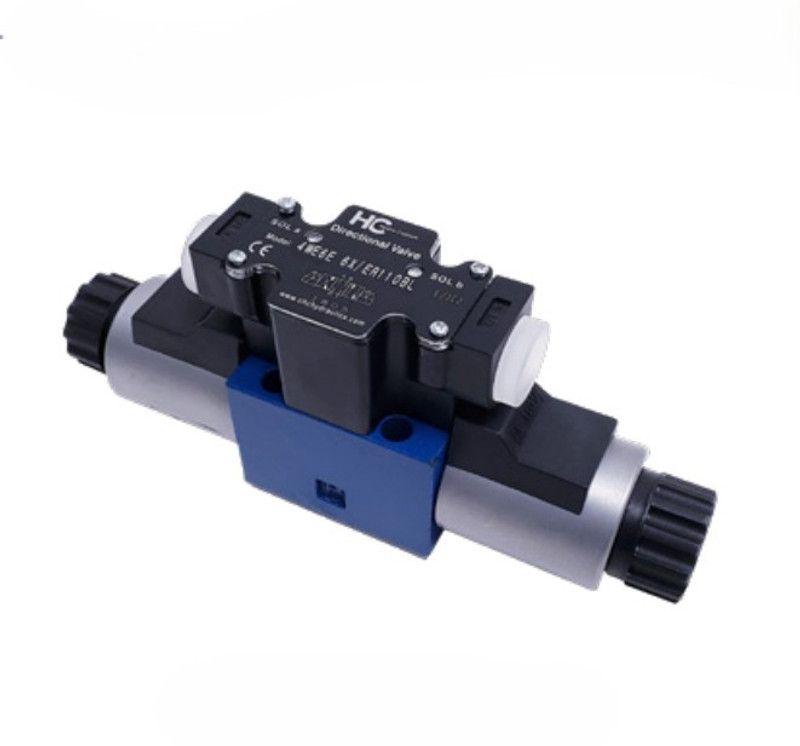

The Hydro Custom CETOP D03 (ISO NG6) Solenoid Operated Directional Valve is a standard type of direct-acting spool and can be interchanged with CETOP and ISO valves on the market.
- DC or AC wet-type solenoid with arbitrary rotation and includes a detachable coil.
- Equipped with manual emergency operation push rod, bolt-kit, and DIN connectors with LED.
- Installation area by DIN24 340 type A.
- UL and CE proof, CSA on demand.
- Other spool models, voltages, and soft shift valves are also available.
- Voltage: 120 VAC BOX
- Spool Action: Closed Center, Spring Returnย
- Model # CUV 4WE6 E 6X/ER110 BL
Specifications
Weight:
4.93 LBS
PSI:
Max: 4560 PSI; Max Backpressure: 2320 PSI
AMPS:
0.38
Voltage:
120 VAC BOX
GPM:
21 @3600 PSI
Action:
Closed Center, Spring Return
Mounting:
CETOP 3
Circuit:
Parallel
