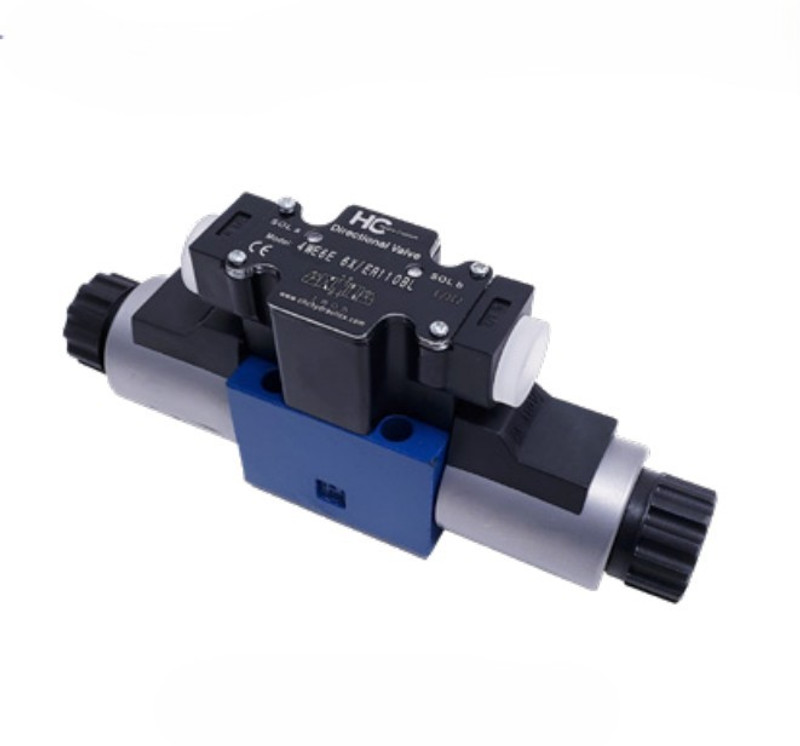

Hydro Custom Cetop D03 (ISO NG6) Solenoid Operated Directional Valves - 24 VDC Junction Box, 4-way 3-Position, Open Center, Spring Return

No reviews yet Write a Review
SKU:
CUV 4WE6 H 6X/ED24 BL
$159.52
$119.64
You save $39.88
PSI: Max: 4560 PSI; Max Backpressure: 2320 PSI
GPM: 13 @3600 PSI
Voltage: 24 VDC BOX
Valving: 4 way 3 position
Action: Open Center, Spring Return

Description

The Hydro Custom CETOP D03 (ISO NG6) Solenoid Operated Directional Valve is a standard type of direct-acting spool and can be interchanged with CETOP and ISO valves on the market.

  • DC or AC wet-type solenoid with arbitrary rotation and includes a detachable coil.
  • Equipped with manual emergency operation push rod, bolt-kit, and DIN connectors with LED.
  • Installation area by DIN24 340 type A.
  • UL and CE proof, CSA on demand.
  • Other spool models, voltages, and soft shift valves are also available.
  • Voltage: 24 VDC BOX
  • Spool Action: Open Center, Spring Return
  • Model # CUV 4WE6 H 6X/ED24 BL

Specifications

Weight:
4.93 LBS
PSI:
Max: 4560 PSI; Max Backpressure: 2320 PSI
AMPS:
1.25
Voltage:
24 VDC BOX
GPM:
13 @3600 PSI
Action:
Open Center, Spring Return
Mounting:
CETOP 3
Circuit:
Series

Technical Documentation
