Description

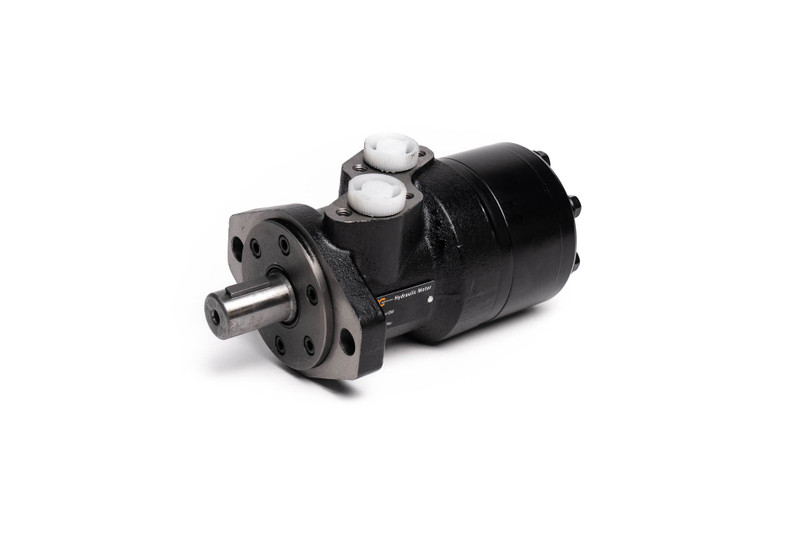

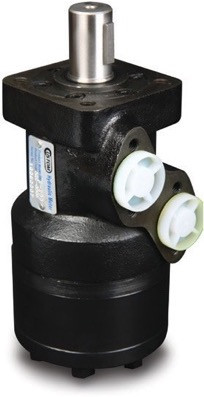

This BM2 Motor rated at 15.8 GPM, 240 RPM, 1595 PSI, and 3403 LBS-IN, has a 250 CC displacement, 1” Keyed Shaft, SAE-10 Port Size, and 2 Bolt Flange. The BM2 series hydraulic motor is a medium-volume, spool valve-type motor with an optional side load-bearing design. Available in H series Eaton and S series Danfoss ports. High-pressure shaft seals up to 2,900 PSI available. The BM2W series wheel motor has a recessed mounting flange with a radial bearing design, which can bear a more significant load. High-pressure shaft seals up to 2,900 PSI are available.
- Utilizes the hydraulic geroler motor design
- Higher efficiency than the BM1 motor series
- Shaft seal designed to bear higher pressures
- Can be used in series or parallel hydraulic circuit applications
- Shaft speed is easily controlled and operates smoothly
- Offers the best efficiency and economy in medium-load applications
- Standard shaft seals are rated at 1,987 PSI
- High-pressure shaft seals available up to 2,900 PSI
Specifications
Weight:
20.24 LBS
PSI:
1595 cont., 2900 inst.
Port Size:
1/2 NPT
CID:
15.2 - 250 cc
GPM:
15.8 cont., 20 inst.
Inlet Port:
1/2 NPT
Outlet Port:
1/2 NPT
Length in Inches:
L - 1.81, L1 - 7.21, L2 - 7.4, L3: 7.64
Mounting:
4 Bolt
RPM:
240 cont., 300 inst.
Shaft:
1 in. Straight
Torque:
3403 cont., 4844 inst.
