Description

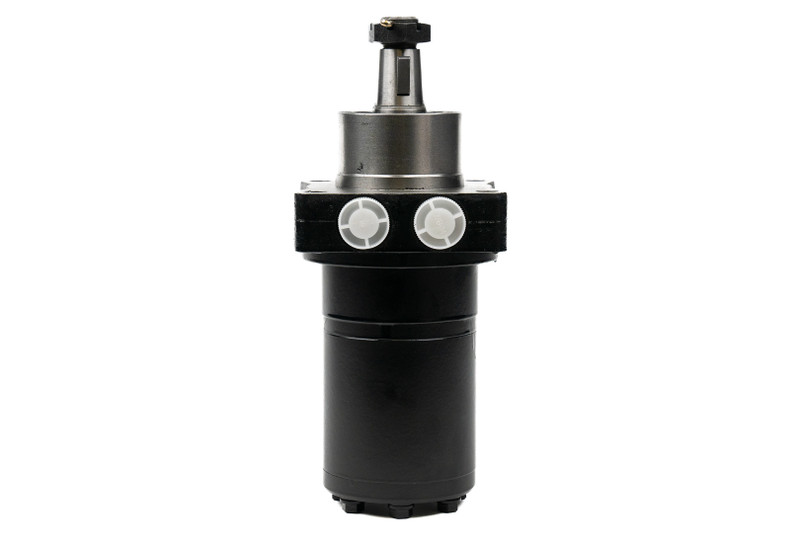

This BM2 Motor rated at 15.8 GPM, 475 RPM, 2030 PSI, and 2210 LBS-IN, has a 125 CC displacement, 1-1/4” Tapered Shaft, SAE-10 Port Size, Wheel Motor Flange, and in-line port configuration. The BM2 series hydraulic motor is a medium-volume, spool valve-type motor with an optional side load-bearing design. Available in H series Eaton and S series Danfoss ports. High-pressure shaft seals up to 2,900 PSI available. The BM2W series wheel motor has a recessed mounting flange with a radial bearing design, which can bear a more significant load. High-pressure shaft seals up to 2,900 PSI are available.
- Utilizes the hydraulic geroler motor design
- Higher efficiency than the BM1 motor series
- Shaft seal designed to bear higher pressures
- Can be used in series or parallel hydraulic circuit applications
- Shaft speed is easily controlled and operates smoothly
- Offers the best efficiency and economy in medium-load applications
- Standard shaft seals are rated at 1,987 PSI
- High-pressure shaft seals available up to 2,900 PSI
Specifications
Weight:
17.16 LBS
PSI:
2030 cont., 2900 inst.
Port Size:
SAE-10
CID:
7.6 - 125 cc
GPM:
15.8 cont., 20 inst.
Inlet Port:
SAE-10
Outlet Port:
SAE-10
Length in Inches:
L - 0.91, L1 - 6.3, L2 - 6.5, L3: 6.73
Mounting:
Wheel Motor
RPM:
475 cont., 600 inst.
Shaft:
1-1/4 in. Taper
Torque:
2210 cont., 2581 inst.
