Description

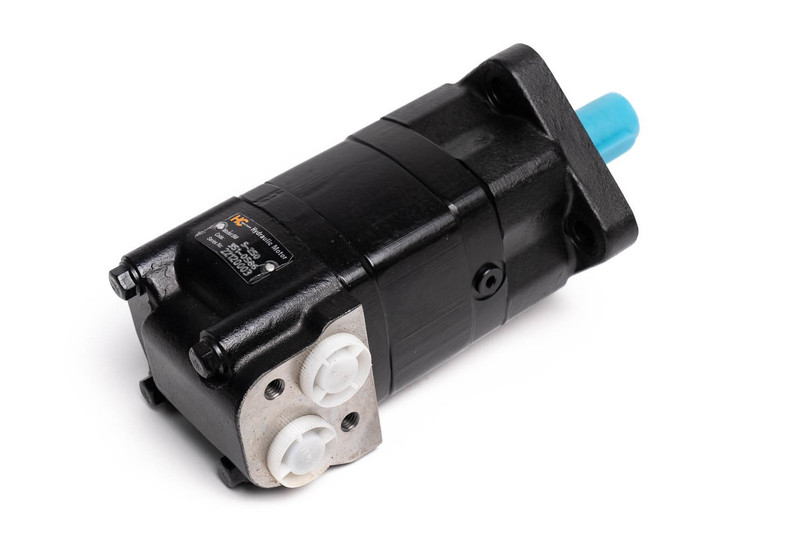

This Hydro Custom BM5 Motor, rated at 365 RPM, 3045 PSI, and 4791 LBS-IN, has a 200 CC displacement, 1" Keyed Shaft, and SAE-A 4 Bolt Flange. The BM5 series hydraulic motor is a large volume, disc valve, high-pressure motor with a radial ball-bearing design that can maintain a more significant load. High-pressure shaft seals up to 2,900 PSI are available. The BM5S is a short motor design without bearings for gearbox assembly applications.
- Large volume, high pressure
- Disc valve, radial bearing design
- Operates efficiently at greater loads
- High-pressure shaft seals available up to 2,900 PSI
Specifications
Weight:
24.20 LBS
PSI:
3045 cont., 3770 inst., 4350 peak
Port Size:
SAE 10
CID:
12.2 - 200 cc
GPM:
20 cont., 30 inst.
Inlet Port:
SAE 10
Outlet Port:
SAE 10
Length in Inches:
L - 1.41, L3: 7.91
Mounting:
SAE-A 4 BOLT
RPM:
365 cont., 577 inst.
Shaft:
1 in. Straight
Torque:
4791 cont., 5622 inst., 5834 peak
