Description

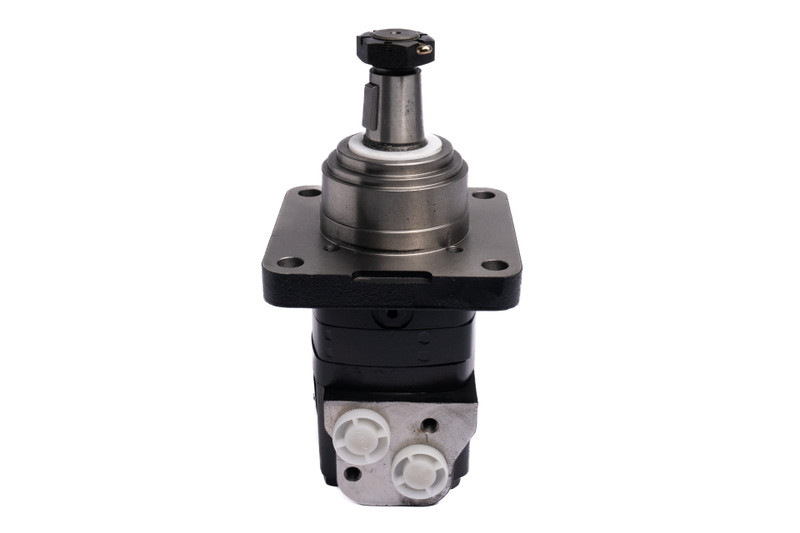

This Hydro Custom BM5 Motor, rated at 246 RPM, 2900 PSI, and 5967 LBS-IN, has a 305 CC displacement, 1-1/4” Tapered Shaft, and Wheel Motor Flange. The BM5 series hydraulic motor is a large volume, disc valve, high-pressure motor with a radial ball-bearing design that can maintain a more significant load. High-pressure shaft seals up to 2,900 PSI are available. The BM5S is a short motor design without bearings for gearbox assembly applications.
- Large volume, high pressure
- Disc valve, radial bearing design
- Operates efficiently at greater loads
- High-pressure shaft seals available up to 2,900 PSI
Specifications
Weight:
29.59 LBS
PSI:
2900 cont., 3480 inst., 4350 peak
Port Size:
SAE 10
CID:
18.59 - 305 cc
GPM:
20 cont., 30 inst.
Inlet Port:
SAE 10
Outlet Port:
SAE 10
Length in Inches:
L - 2.2, L3: 8.7
Mounting:
WHEEL MOTOR
RPM:
246 cont., 365 inst.
Shaft:
1 1/4 in. TAPER
Torque:
5967 cont., 6851 inst., 8212 peak
