Description

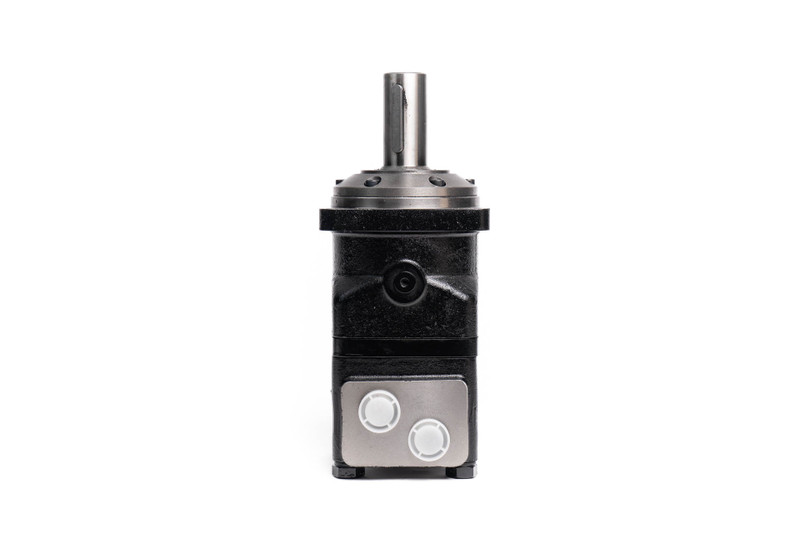

This Hydro Custom BM6 Motor, rated at 184 RPM, 1740 PSI, and 12483 LBS-IN, has a 800 CC displacement, 1-1/2" Keyed Shaft, and SAE-C 4-Bolt Flange. The BM6 is a large volume, disc valve, high-pressure motor with a radial ball-bearing design that can maintain a more significant load and has higher torque capabilities than the BM5 series.
- Large volume, high pressure and high torque
- Disc valve, radial bearing design
- Improved performance at lower speeds
- Double taper roller bearings permit high radial loads
- With high volumetric efficiency, the motor’s valve can automatically compensate for wear
- Can be used on heavier vehicles in traction drive applications
Specifications
Weight:
69.85 LBS
PSI:
1740 cont., 2030 inst.
Port Size:
SAE-16
CID:
48.7 - 800 cc
GPM:
40 cont., 60 inst.
Inlet Port:
SAE-16
Outlet Port:
SAE-16
Length in Inches:
12.83
Mounting:
SAE-C 4-Bolt
RPM:
184 cont., 276 inst.
Shaft:
1-1/2 in. Straight Key
Torque:
12483 cont., 14551 inst.
