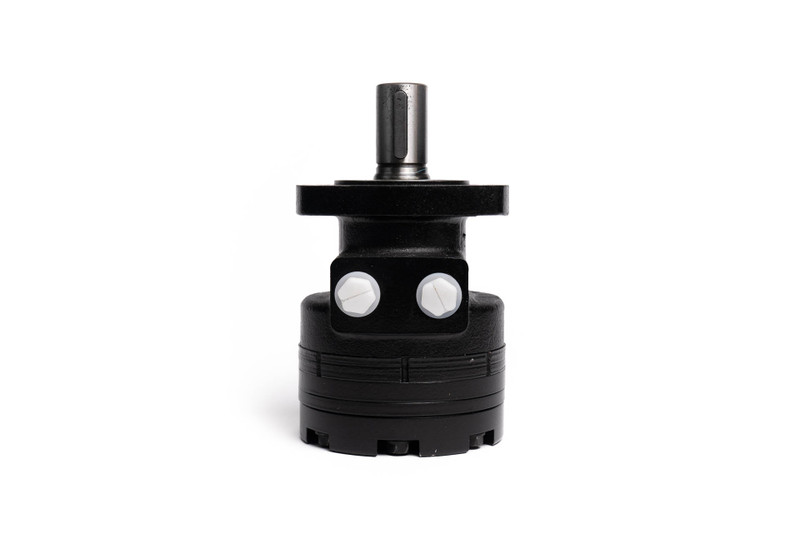

Hydro Custom BME Hydraulic Magneto Motor - 18.00 (300) Displ., SAE 10 Ports, 1 1/4” Straight Shaft

No reviews yet Write a Review
SKU:
CUM 392-0024F
$530.30
$397.73
You save $132.57
The BME Series motor is ideal for high-pressure, low-speed applications. Features include needle bearings, allowing for high axial and radial force resistance. The BME can maintain high volume efficiency with a long working life. View full description

Description

This Hydro Custom BME Motor, rated at 21.13 GPM, 250 RPM, 2973 PSI, and 7169 LBS-IN, has a 300 CC displacement, 1-1/4” Keyed Shaft, SAE-10 Port Size, and Magneto Mount Flange. The BME motor has an advanced geroler gear set design. This series motor is suited for high-pressure, high-efficiency, low-speed applications. The BME can maintain high volume efficiency with a long working life. High-pressure shaft seals up to 2,900 PSI are available.

  • The advanced geroler gear set of the BME series allows for high efficiency and low-pressure start-up
  • Needle bearings allow the motor to sustain higher axial and radial forces in high-pressure applications
  • Advanced flow distribution provides operating higher efficiency at low speeds
  • Standard shaft seals rated at 1,900 PSI with high-pressure shaft seals available up to 2,900 PSI

Specifications

Weight:
24.42 LBS
PSI:
2973 cont., 3480 inst.
Port Size:
SAE 10
CID:
18.00 - 300 cc
GPM:
21.13 cont., 25.1 inst.
Inlet Port:
SAE 10
Outlet Port:
SAE 10
Length in Inches:
L - 6.69, L1 - 5.02
Mounting:
Magneto Mount
RPM:
250 cont., 315 inst.
Shaft:
1 1/4 in. Straight
Torque:
7169 cont., 8231 inst.
