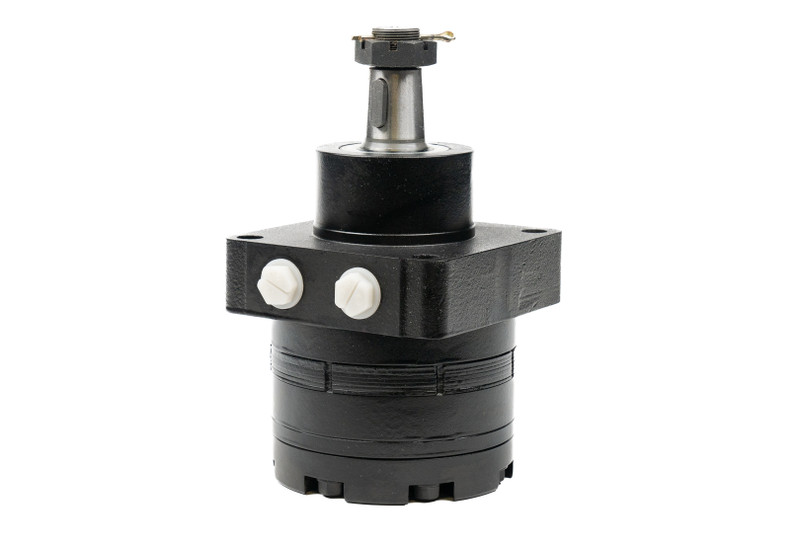

Hydro Custom BME Series Hydraulic Wheel Motor - 18.00 (300) Displ., SAE 10 Ports, 1 1/4” Taper Shaft

This BME Motor, rated at 21.13 GPM, 250 RPM, 2973 PSI, and 7169 LBS-IN, has a 300 CC displacement, 1-1/4” Tapered Shaft, SAE-10 Port Size, and Wheel Motor Flange. The BME motor has an advanced geroler gear set design. This series motor is suited for high-pressure, high-efficiency, low-speed applications. The BME can maintain high volume efficiency with a long working life. High-pressure shaft seals up to 2,900 PSI are available.

• The advanced geroler gear set of the BME series allows for high efficiency and low-pressure start-up
• Needle bearings allow the motor to sustain higher axial and radial forces in high-pressure applications
• Advanced flow distribution provides operating higher efficiency at low speeds
• Standard shaft seals rated at 1,900 PSI with high-pressure shaft seals available up to 2,900 PSI
