Description

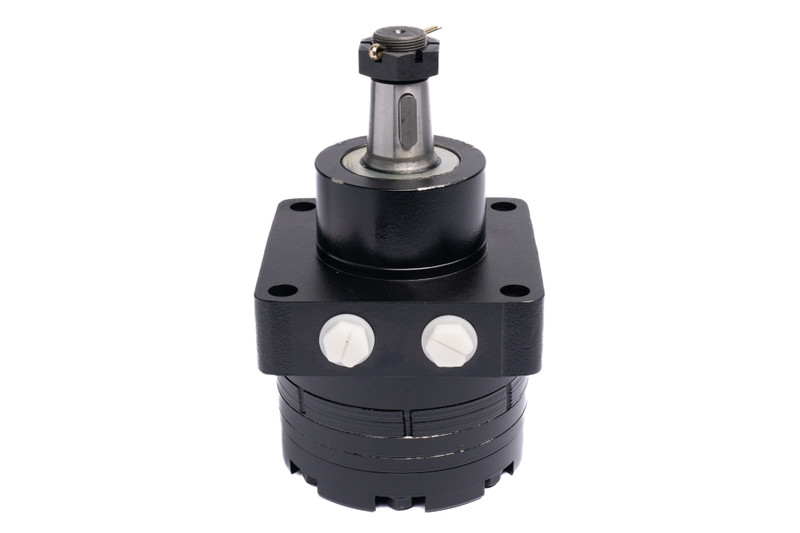

This Hydro Custom BME Motor, rated at 11.89 GPM, 336 RPM, 2973 PSI, and 3088 LBS-IN, has a 125 CC displacement, 1-1/4” Tapered Shaft, SAE-10 Port Size, and a Wheel Motor Flange. The BME motor has an advanced geroler gear set design. This series motor is suited for high-pressure, high-efficiency, low-speed applications. The BME can maintain high volume efficiency with a long working life. High-pressure shaft seals up to 2,900 PSI are available.
- The advanced geroler gear set of the BME series allows for high efficiency and low-pressure start-up
- Needle bearings allow the motor to sustain higher axial and radial forces in high-pressure applications
- Advanced flow distribution provides operating higher efficiency at low speeds
- Standard shaft seals rated at 1,900 PSI with high-pressure shaft seals available up to 2,900 PSI
Specifications
Weight:
24.20 LBS
PSI:
2973 cont., 3480 inst.
Port Size:
SAE 10
CID:
7.75 - 125 cc
GPM:
11.89 cont., 15.85 inst.
Inlet Port:
SAE 10
Outlet Port:
SAE 10
Length in Inches:
L - 6.06, L1 - 4.43
Mounting:
Wheel Motor
RPM:
336 cont., 450 inst.
Shaft:
1 1/4 in. Taper
Torque:
3088 cont., 3611 inst.
