Description

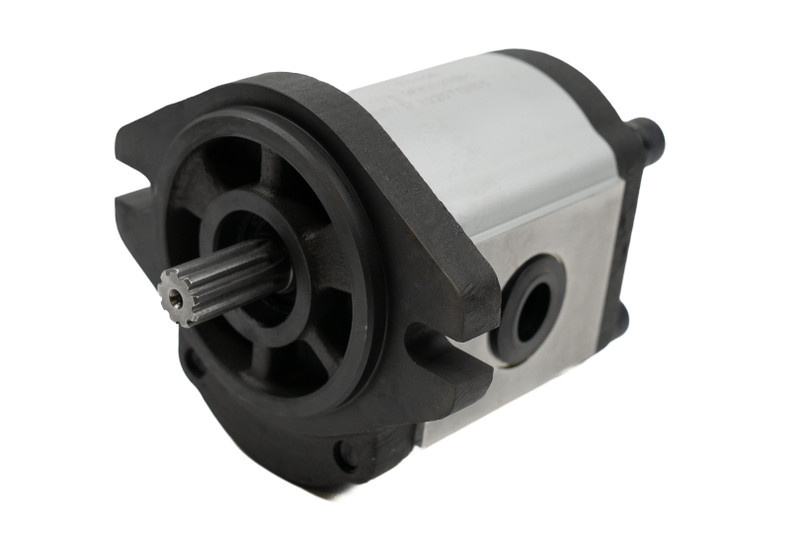

Constructed of an aluminium center section and cast iron end plates, model GP-F20 is a high-pressure hydraulic gear pump with 11 displacement sizes from 0.24 - 1.95 in. The standard mounting flange is a SAE A - 2 bolt.
Specifications
Weight:
9.50 LBS
PSI:
2900
Cubic Inch Displ. (CID):
1.52
Flange O.D.:
4.17 center to center bolt
Inlet Port:
SAE-12
Mounting:
2 bolt A flange
RPM:
3600
Shaft:
9 tooth spline x 1.25 length
