Description

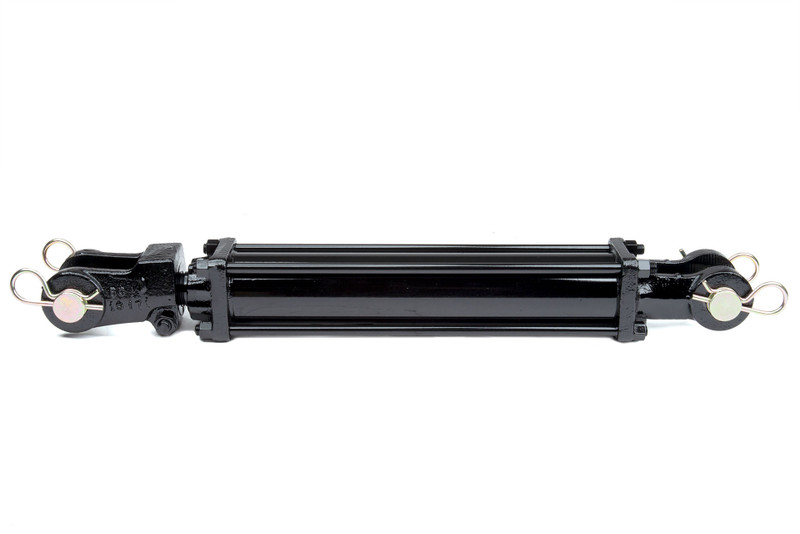

This Chiefยฎ TC3 tie-rod hydraulic cylinder, rated at 3000 PSI, has a 5 in. bore X 30 in. stroke. TC3 cylinders are designed for use in a variety of double-acting applications including agricultural, compact construction and transportation equipment as well as waste and recycling. They provide outstanding performance and use clevis mounts for easy hookup. Featuring SAE O-ring ports for easy hookup every Chief TC3 cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability. Every Chief TC3 comes with a 3-year warranty.
Specifications
Weight:
153.00 LBS
Bore:
5 in
Stroke:
30 in
PSI:
3000
Rod Dia.:
2.25 in
Pin Dia. :
1.25 in
Retracted:
42.25 in
Extended:
72.25 in
Port Size:
SAE 12
Column Load:
56340 lbs
