Description

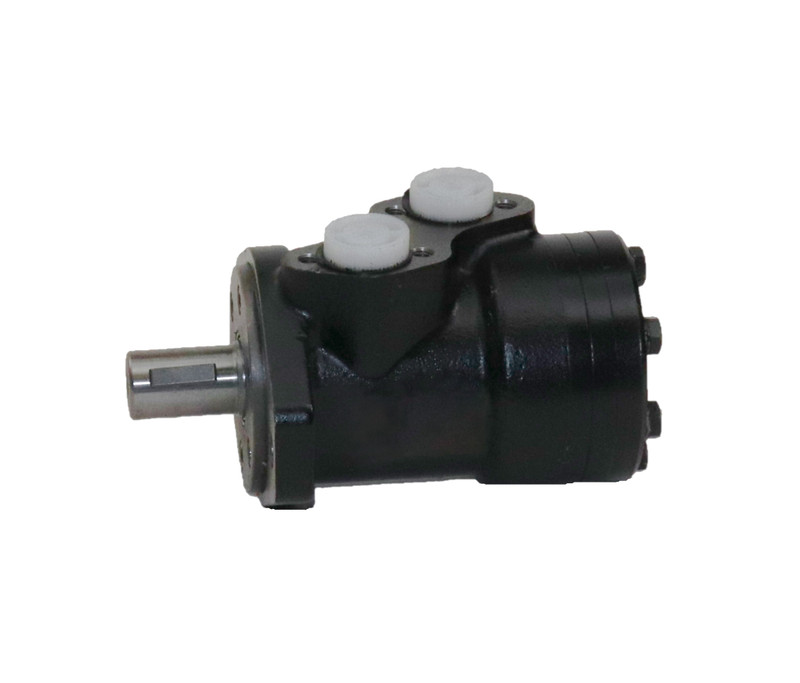

This BM1 Motor, rated at 15 GPM, 220 RPM, 1595 PSI, and 3182 LBS-IN, has a 250 cc displacement, 1"-6T Splined Shaft, 1/2 NPT Port Size, Type S Port Configuration and 4-Bolt Flange. The BM1 series hydraulic motor is a small volume, spool valve type motor with an optional side load-bearing design. Available in H series Eaton and S series Danfoss ports. High-pressure shaft seals up to 2,900 PSI are available.
- Compact design of spool and gear set that provides small volume, high power, and low weight
- Direction of shaft rotation and speed can be controlled quickly and smoothly
- Best combination of efficiency and economy in medium-load applications
- Standard shaft seals rated at 1,900 PSI
- High-pressure shaft seals up to 2,900 PSI, available upon request
Specifications
Weight:
14.00 LBS
PSI:
1595 cont., 2030 inst., 2610 peak
Port Size:
1/2 NPT
CID:
15.2 - 250 cc
GPM:
15 cont., 20 inst.
Inlet Port:
1/2 NPT
Outlet Port:
1/2 NPT
Length in Inches:
L - 1.81, L1 - 7.07, L2 - 7.26
Mounting:
4-Bolt Flange
RPM:
220 cont., 270 inst.
Shaft:
1 in.-6T Spline
Torque:
3182 cont., 4022 inst., 4113 peak
