Description

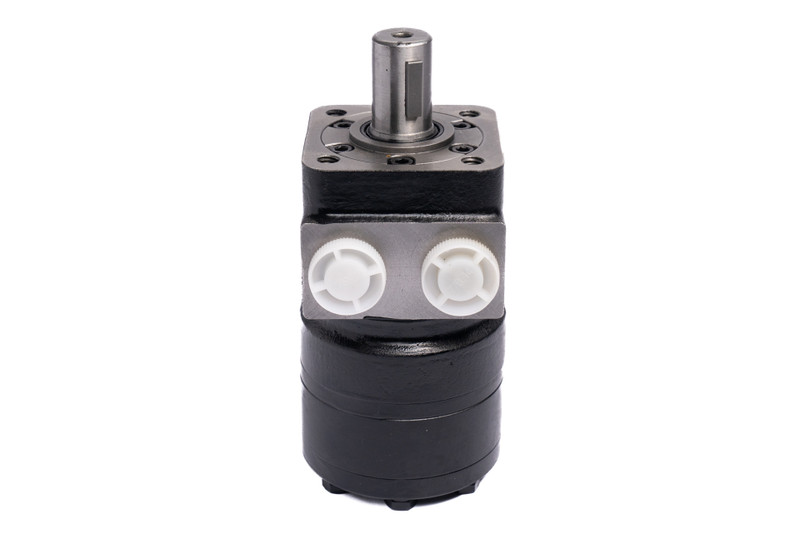

This Hydro Custom BM1 Motor, rated at 15 GPM, 140 RPM, 1015 PSI, and 3845 LBS-IN, has a 400 cc displacement, 1" Keyed Shaft, SAE-10 Port Size, and 4-Bolt Flange. The BM1 series hydraulic motor is a small volume, spool valve type motor with an optional side load-bearing design. Available in H series Eaton and S series Danfoss ports. High-pressure shaft seals up to 2,900 PSI are available.
- Compact design of spool and gear set that provides small volume, high power, and low weight
- Direction of shaft rotation and speed can be controlled easily and smoothly
- Best combination of efficiency and economy in medium load applications
- Standard shaft seals rated at 1,900 PSI
- High-pressure shaft seals up to 2,900 PSI, available upon request
- Type H Port Configuration
Specifications
Weight:
18.70 LBS
PSI:
1015 cont., 1522 inst., 2030 peak
Port Size:
SAE-10
CID:
24.4 - 400 cc
GPM:
15 cont., 20 inst.
Inlet Port:
SAE-10
Outlet Port:
SAE-10
Length in Inches:
L - 2.84, L1 - 8.07, L2 - 8.27
Mounting:
4-Bolt Flange
RPM:
140 cont., 180 inst.
Shaft:
1 in. Straight Key
Torque:
3845 cont., 4694 inst., 4922 peak
