Description

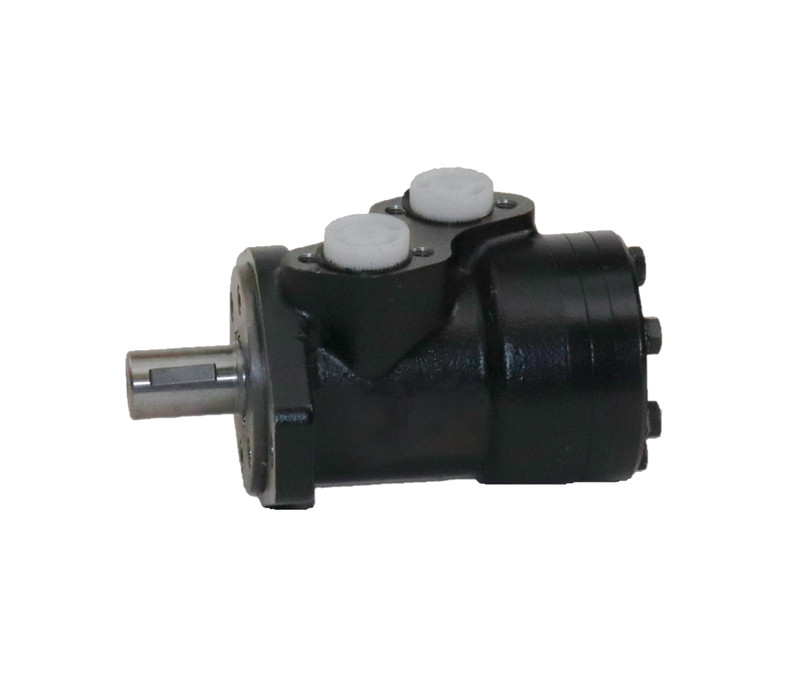

This Hydro Custom BM1 Motor, rated at 15 GPM, 550 RPM, 2030 PSI, and 1423 LBS-IN, has a 100 cc displacement, 1" Keyed Shaft, 1/2 NPT Port Size, Type S Port Configuration and 2-Bolt Flange. The BM1 series hydraulic motor is a small volume, spool valve type motor with an optional side load-bearing design. Available in H series Eaton and S series Danfoss ports. High-pressure shaft seals up to 2,900 PSI are available.
- Compact design of spool and gear set that provides small volume, high power, and low weight
- Direction of shaft rotation and speed can be controlled easily and smoothly
- Best combination of efficiency and economy in medium load applications
- Standard shaft seals rated at 1,900 PSI
- High-pressure shaft seals up to 2,900 PSI, available upon request
Specifications
Weight:
14.21 LBS
PSI:
2030 cont., 2537 inst., 3262 peak
Port Size:
1/2 NPT
CID:
6.1 - 100 cc
GPM:
15 cont., 20 inst.
Inlet Port:
1/2 NPT
Outlet Port:
1/2 NPT
Length in Inches:
L - 0.7, L1 - 5.95, L2 - 6.14
Mounting:
2-Bolt Flange
RPM:
550 cont., 673 inst.
Shaft:
1 in. Straight Key
Torque:
1423 cont., 1874 inst., 1990 peak
