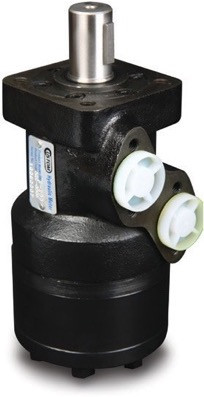

Hydro Custom BM2 Hydraulic Motor - 12.2 (200) Displ., 1/2 NPT Ports, 1” Straight Key Shaft, 4 Bolt Flange

No reviews yet Write a Review
SKU:
CUM 322-0395
$233.88
$191.79
You save $42.09
The BM2 boasts higher efficiency than our BM1 series. Features robust shaft seal design for high-pressure-use in parallel or series applications. Smooth and easy control over shaft speed and direction, ideal for medium load applications. View full description

Description

This BM2 Motor rated at 15.8 GPM, 300 RPM, 1885 PSI, and 2917 LBS-IN, has a 200 CC displacement, 1” Keyed Shaft, 1/2 NPT Port Size, and 4 Bolt Flange. The BM2 series hydraulic motor is a medium-volume, spool valve-type motor with an optional side load-bearing design. Available in H series Eaton and S series Danfoss ports. High-pressure shaft seals up to 2,900 PSI available. The BM2W series wheel motor has a recessed mounting flange with a radial bearing design, which can bear a more significant load. High-pressure shaft seals up to 2,900 PSI are available.

  • Utilizes the hydraulic geroler motor design
  • Higher efficiency than the BM1 motor series
  • Shaft seal designed to bear higher pressures
  • Can be used in series or parallel hydraulic circuit applications
  • Shaft speed is easily controlled and operates smoothly
  • Offers the best efficiency and economy in medium-load applications
  • Standard shaft seals are rated at 1,987 PSI
  • High-pressure shaft seals available up to 2,900 PSI

Specifications

Weight:
18.92 LBS
PSI:
1885 cont., 2900 inst.
Port Size:
1/2 NPT
CID:
200 cc
GPM:
15.8 cont., 20 inst.
Inlet Port:
1/2 NPT
Outlet Port:
1/2 NPT
Length in Inches:
L 1.46, L1 - 6.85, L2 - 7.05, L3 - 7.28
Mounting:
4 Bolt
RPM:
300 cont., 375 inst.
Shaft:
1 in. Straight Key
Torque:
2917 cont., 3960 inst.
