Description

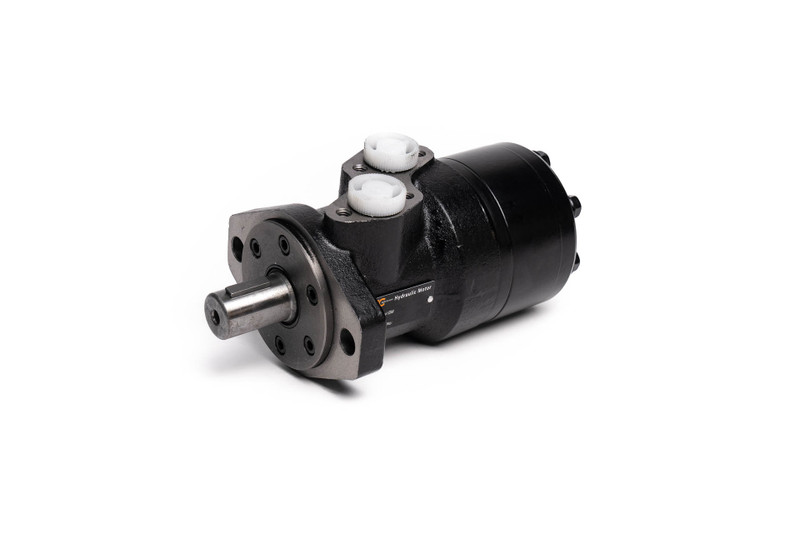

This BM2 Motor rated at 10.5 GPM, 755 RPM, 2030 PSI, and 884 LBS-IN, has a 50 CC displacement, 1” Keyed Shaft, SAE-10 Port Size, and 4 Bolt Flange. The BM2 series hydraulic motor is a medium-volume, spool valve-type motor with an optional side load-bearing design. Available in H series Eaton and S series Danfoss ports. High-pressure shaft seals up to 2,900 PSI available. The BM2W series wheel motor has a recessed mounting flange with a radial bearing design, which can bear a more significant load. High-pressure shaft seals up to 2,900 PSI are available.
- Utilizes the hydraulic geroler motor design
- Higher efficiency than the BM1 motor series
- Shaft seal designed to bear higher pressures
- Can be used in series or parallel hydraulic circuit applications
- Shaft speed is easily controlled and operates smoothly
- Offers the best efficiency and economy in medium-load applications
- Standard shaft seals are rated at 1,987 PSI
- High-pressure shaft seals available up to 2,900 PSI
Specifications
Weight:
16.57 LBS
PSI:
2030 cont., 2537 inst.
Port Size:
SAE-10
CID:
3.0 - 50 cc
GPM:
10.5 cont., 13.2 inst.
Inlet Port:
SAE-10
Outlet Port:
SAE-10
Length in Inches:
L - 0.35, L1 - 5.75, L2 - 5.95, L3: 6.18
Mounting:
4 Bolt
RPM:
755 cont., 970 inst.
Shaft:
1 in. Straight Key
Torque:
884 cont., 1105 inst.
