Description

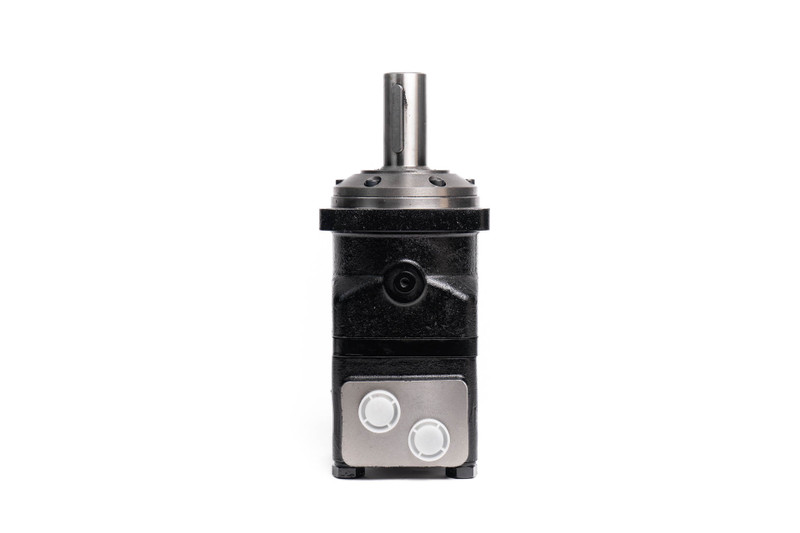

This BM6 Motor rated at 241 RPM, 2030 PSI, and 11731 LBS-IN, has a 625 CC displacement, 1-1/2" Keyed Shaft, and SAE-C 4-Bolt Flange. The BM6 is a large volume, disc valve, high-pressure motor with a radial ball-bearing design that can maintain a more significant load and has higher torque capabilities than the BM5 series.
- Large volume, high pressure, and high torque
- Disc valve, radial bearing design
- Improved performance at lower speeds
- Double taper roller bearings permit high radial loads
- With high volumetric efficiency, the motor’s valve can automatically compensate for wear
- Can be used on heavier vehicles in traction drive applications
Specifications
Weight:
66.00 LBS
PSI:
2030 cont., 2465 inst.
Port Size:
SAE-16
CID:
38.1 - 625 cc
GPM:
40 cont., 60 inst.
Inlet Port:
SAE-16
Outlet Port:
SAE-16
Length in Inches:
12
Mounting:
SAE-C 4-Bolt
RPM:
241 cont., 355 inst.
Shaft:
1-1/2 in. Straight Key
Torque:
11731 cont., 12155 inst.
